Capture surface
- Contact smart card · ISO 7816
- Contactless · ISO 14443 A/B
- USB 2.0 CCID host interface
DEVICE · CHECKID

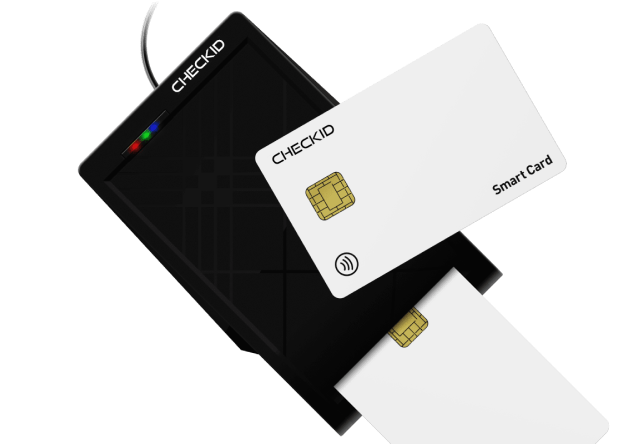

R502-CL
R502-CL is a terminal interface device for smart card applications and system integrations. It can be widely used in industries or applications requiring electronic payment and authentication, especially suitable for the high security fields. It is an optimal solution for authentication, e-commerce, financial organizations, access control etc.
3-LAYER MODEL
Hardware → Middleware → Platform
The device is part of the trust chain, not an isolated catalogue item.
Driver / firmware / adapter
- PC/SC · WINSCARD / CT-API
- Driver / firmware security controls
- Multi-OS host support as published
CheckID integration
- SDK / adapter
- REST / Kafka where applicable
- Subject → Process → Evidence
SPECIFICATION
Source-backed technical specification
| Field | Published / source-backed value |
|---|---|
| Host Interface | USB 2.0 CCID (also complaint with USB 1.1) |
| Contact | Supported Card Types: 1.8V, 3V and 5V Smart Card Interface Speed: 10753~625kbps Smart Card Clock Frequency: 4M ISO 7816-3 ID-1 (full-size) ISO / IEC7816, T=0 and T=1 protocol, Class A, B, C cards |
| Supported OS | Win2000+ / Linux / macOS X / UNIX / Android(OTG) |
| Size | 120 × 80 × 25.6 mm |
| Certification | CE / FCC / RoHS / EMV Level 1 / LTIC / BSMI / UL |
| API Standard | PC / SC Lite / WINSCARD API / CT-API |
| Transmission Speed | 12Mbps (USB 2.0 Full Speed) |
INTEGRATION
Device → SDK → API → Evidence
Cross-navigation connects capture capabilities to CheckID process and evidence.
SDK / Adapter
Capture and session integration.
CheckID Process
Subject/process workflow selected by use case.
Evidence
Result, transaction context and audit trail.
SOURCE-BOUND REFERENCE
R502-CL: source-backed product specification
Source → Scope → Evidence → Limitation
Model and source
R502-CL · official CheckID public product source. Source status: SOURCE_BACKED.
Source-backed hardware
Contact smart card · ISO 7816; Contactless · ISO 14443 A/B; USB 2.0 CCID host interface.
Middleware boundary
PC/SC · WINSCARD / CT-API; Driver / firmware security controls; Multi-OS host support as published.
CheckID integration
SDK/API cross-link. Device capability does not imply every verification method is supported.
Publication rule
No CPU/OS/interface/certification is added beyond the matrix/datasheet. Compatibility is tied to tested configuration or source version.
Lifecycle and limitations
Where EOL, firmware compatibility or tested OS is not sourced, records a publication limitation rather than inferring it.
