Capture surface
- 43″ touch screen · 1920×1080
- NFC · smartcard · ID/passport reader
- Receipt printer · encryption keyboard · QR/barcode
DEVICE · CHECKID

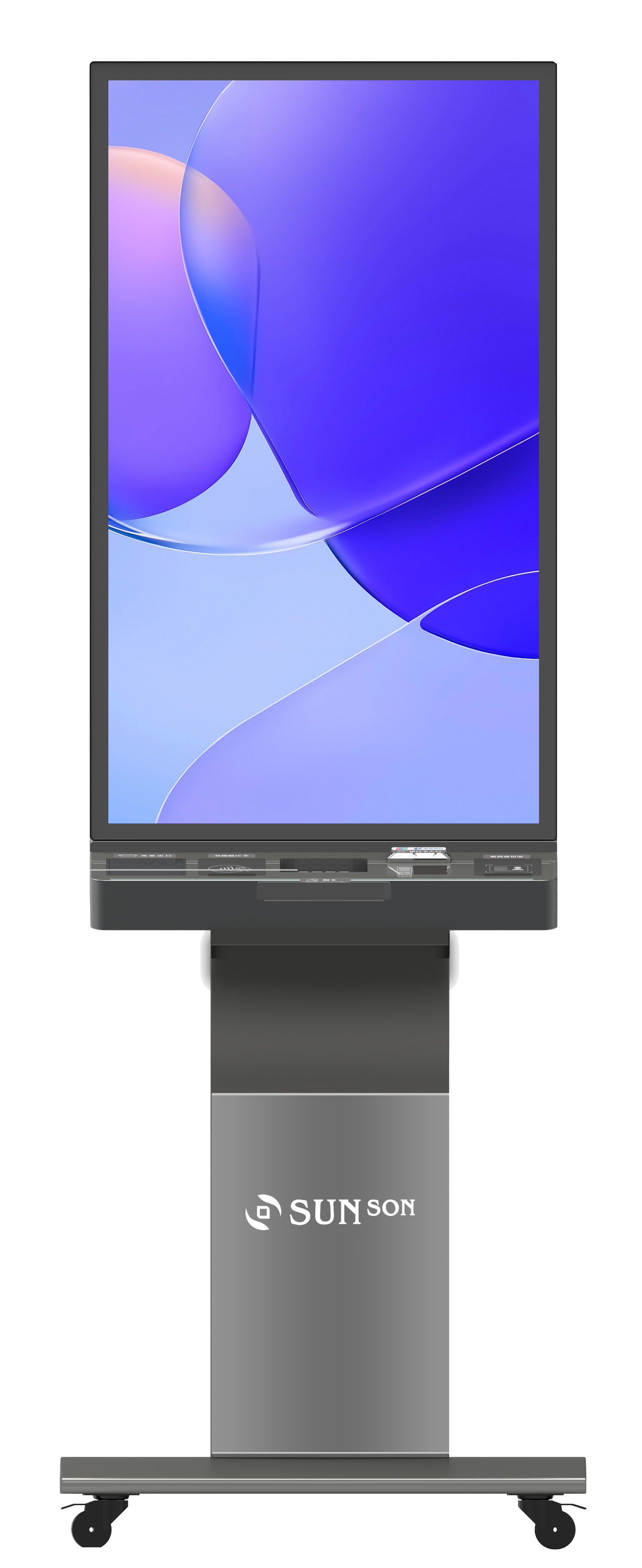

CheckID-R77
Self-service terminal with payment, advertising and business-promotion functions. Supports bank-card and QR-code payments. Suited to auto stores — new and used-car trade, settlement, after-sales, maintenance appointments, financial value-added services, self-parking payment, transaction inquiry and promotion.
3-LAYER MODEL
Hardware → Middleware → Platform
The device is part of the trust chain, not an isolated catalogue item.
Driver / firmware / adapter
- Device driver / firmware as applicable
- Secure capture and local integration
- Compatibility must follow device package
CheckID integration
- SDK / adapter
- REST / Kafka where applicable
- Subject → Process → Evidence
SPECIFICATION
Source-backed technical specification
| Field | Published / source-backed value |
|---|---|
| Main control | Android; 4G RAM; 128G storage; 8× USB, TTL, RS232, LVDS, HDMI; Wi‑Fi, 4G, Bluetooth |
| 4G module | PCI-E interface |
| Speaker | 2 built-in speakers |
| Display | 43″ touch screen · 1920×1080 |
| Receipt printer | USB; paper width 58 mm; roll diameter 50 mm |
| ID/passport reader | ID card and passport scan; USB |
| Encryption keyboard | RS232; GM and PCI certified; DES / double DES / triple DES |
| Barcode reader | TTL; barcode and QR |
| Dimension | 660 × 600 × 1870 mm (W×D×H) |
INTEGRATION
Device → SDK → API → Evidence
Cross-navigation connects capture capabilities to CheckID process and evidence.
SDK / Adapter
Capture and session integration.
CheckID Process
Subject/process workflow selected by use case.
Evidence
Result, transaction context and audit trail.
SOURCE-BOUND REFERENCE
CheckID-R77: source-backed product specification
Source → Scope → Evidence → Limitation
Model and source
CheckID-R77 · official CheckID public product source. Source status: SOURCE_BACKED.
Source-backed hardware
Android kiosk; 43″ display; NFC/card; ID/passport reader; printer; QR. Only source-backed product attributes are published.
Middleware boundary
reader driver boundary. Concrete driver/firmware versions require separate source evidence when absent from the datasheet/matrix.
CheckID integration
SDK/API cross-link. Device capability does not imply every verification method is supported.
Publication rule
No CPU/OS/interface/certification is added beyond the matrix/datasheet. Compatibility is tied to tested configuration or source version.
Lifecycle and limitations
Where EOL, firmware compatibility or tested OS is not sourced, records a publication limitation rather than inferring it.
