Capture surface
- 10.1" capacitive touch · 1280×800
- NIBP · ECG · SpO2 · height/weight · temperature
- Receipt printer · speakers
DEVICE · CHECKID

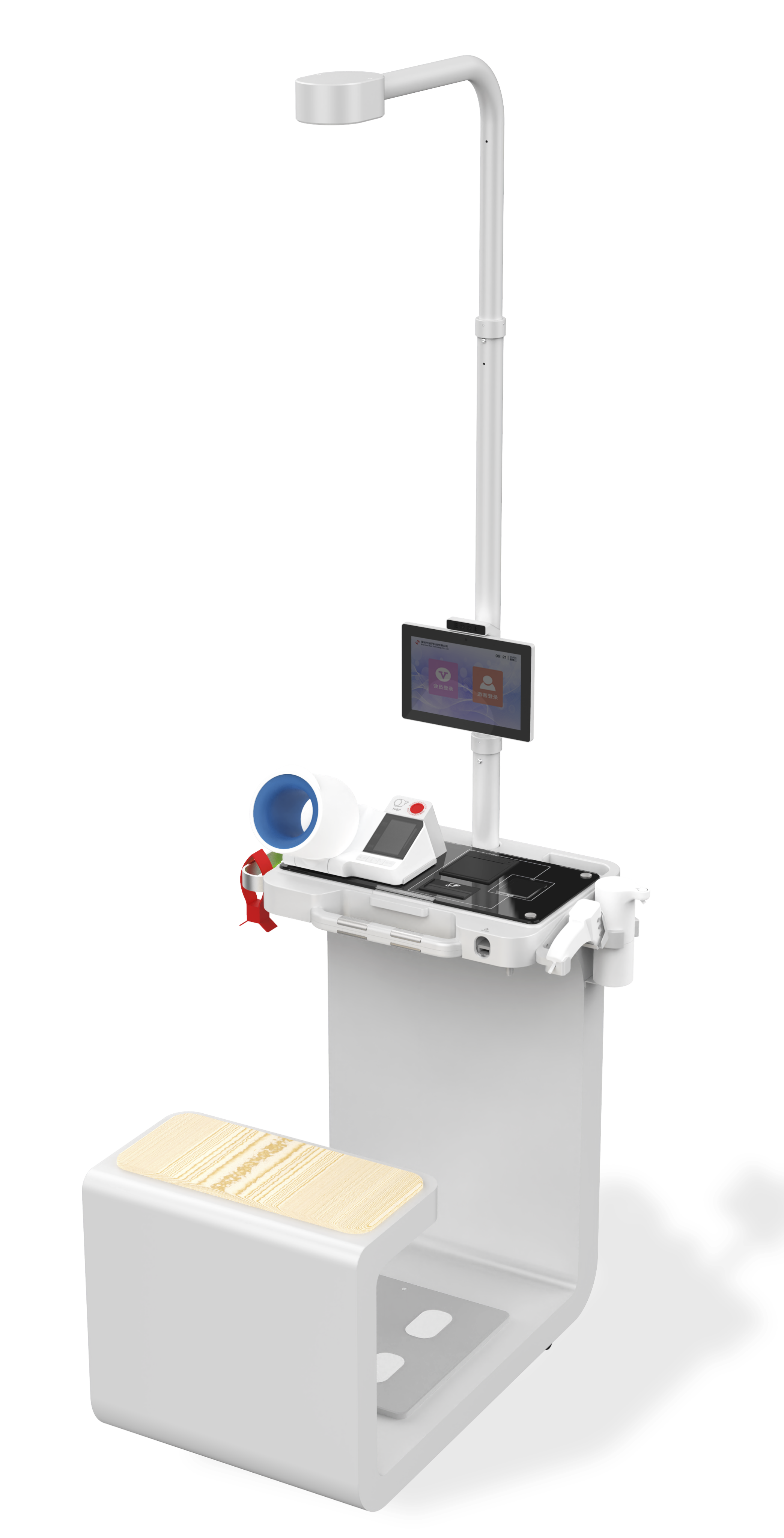

CheckID-D1070
This comprehensive health monitoring station reports patient data to your pharmacy system for actionable patient consulting. The product has passed ETL 60601 certification and is produced in strict accordance with ISO13485 medical system and MDSAP quality management system
3-LAYER MODEL
Hardware → Middleware → Platform
The device is part of the trust chain, not an isolated catalogue item.
Driver / firmware / adapter
- Industrial J6412 control board
- USB / RS232 / RS485 interfaces
- Auto-start / timed power controls
CheckID integration
- SDK / adapter
- REST / Kafka where applicable
- Subject → Process → Evidence
SPECIFICATION
Source-backed technical specification
| Field | Published / source-backed value |
|---|---|
| MAIN CONTROL | Industrial control motherboard, J6412, CPU main frequency 2.0GHz; 1 SO-DIMM 1 VGA, 1 HDMI; 9 USB interfaces, 4 RS232 interfaces, two 1000Mb adaptive Network cards, supporting TCP/IP protocol, DC12V Power on AutoStart, timed on/off function |
| MULTI-TOUCH | 10.1-inch with capacitive touch technology |
| BLOOD PRESSURE NIBP | USB interface, DC12V, roll type, arm circumference 16cm—43cm, 0mmhg-300mmhg, systolic blood pressure: 8.0-30.7KPA, diastolic pressure: 5.3-17.3KPA, (ATM. pressure)860HPA-1060HAP |
| 3 CHANNELS ECG | Sampling 3 Leads simultaneously（1.5M cables） |
| BLOOD OXYGEN | USB interface, DC5V, blood oxygen saturation range 70%-100%. accuracy±2% |
| WEIGHT | RS485 interface, DC12V, range 200KG, accuracy 0.1KG |
| HEIGHT | RS485 interface, DC12V, measuring range 8-200CM, Accuracy 0.1CM |
| BODY TEMPERATURE | USB interface, DC5V, temperature measurement range 34-42.9 degrees, infrared sensing, distance 5-15CM, Accuracy 0.2 °C |
| RECEIPT PRINTER | DC12V/2A, RS232/USB interface, paper width 58 mm, maximum roll diameter of 50mm, with paper near-end alarm, black mark detection & anti-jam function |
INTEGRATION
Device → SDK → API → Evidence
Cross-navigation connects capture capabilities to CheckID process and evidence.
SDK / Adapter
Capture and session integration.
CheckID Process
Subject/process workflow selected by use case.
Evidence
Result, transaction context and audit trail.
SOURCE-BOUND REFERENCE
CheckID-D1070: source-backed product specification
Source → Scope → Evidence → Limitation
Model and source
CheckID-D1070 · official CheckID public product source. Source status: SOURCE_BACKED.
Source-backed hardware
10.1" capacitive touch · 1280×800; NIBP · ECG · SpO2 · height/weight · temperature; Receipt printer · speakers.
Middleware boundary
Industrial J6412 control board; USB / RS232 / RS485 interfaces; Auto-start / timed power controls.
CheckID integration
SDK/API cross-link. Device capability does not imply every verification method is supported.
Publication rule
No CPU/OS/interface/certification is added beyond the matrix/datasheet. Compatibility is tied to tested configuration or source version.
Lifecycle and limitations
Where EOL, firmware compatibility or tested OS is not sourced, records a publication limitation rather than inferring it.
