Capture surface
- NFC 13.56 MHz · ISO/IEC 14443 A/B
- MRZ 300 dpi multispectral
- Fingerprint (model capability)
DEVICE · CHECKID

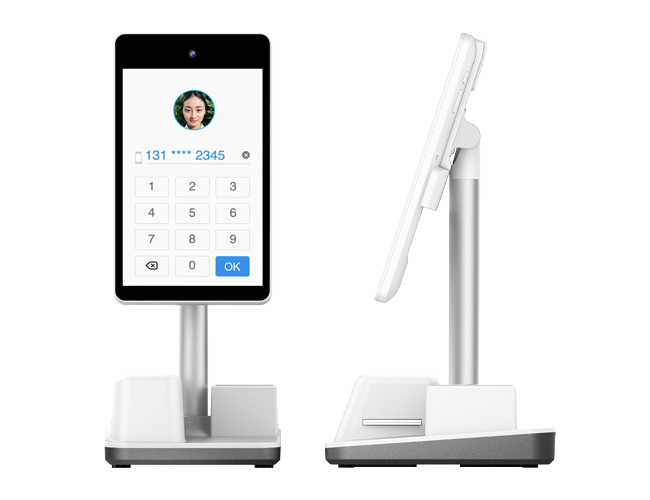

CheckID-ET100
CheckID-ET100 is designed to meet tough security needs without sacrificing convenience. The device has a USB Type A female port allowing for it to be connected to a PC. Various biometric sensors such as SecuGen, SupreMa, ZKTeco and Morpho are supported by the card reader. The biometric sensor should be selected based on customer requirements.
3-LAYER MODEL
Hardware → Middleware → Platform
The device is part of the trust chain, not an isolated catalogue item.
Driver / firmware / adapter
- Device driver / firmware as applicable
- Secure capture and local integration
- Compatibility must follow device package
CheckID integration
- SDK / adapter
- REST / Kafka where applicable
- Subject → Process → Evidence
SPECIFICATION
Source-backed technical specification
| Field | Published / source-backed value |
|---|---|
| Processor / host | Cortex-A53 2.0 GHz |
| Memory | 2/4 GB · 16/32/64 GB |
| Display | 10.1" · 1280×800 |
| Camera | 5 MP |
| NFC / card | NFC 13.56 MHz · ISO/IEC 14443 A/B |
| MRZ / document | MRZ 300 dpi multispectral |
| Biometric | Fingerprint (model capability) |
| Connectivity | Wi-Fi · Bluetooth · Ethernet · cellular |
| Physical / OS | 273×155×20 mm · 2.5 kg |
INTEGRATION
Device → SDK → API → Evidence
Cross-navigation connects capture capabilities to CheckID process and evidence.
SDK / Adapter
Capture and session integration.
CheckID Process
Subject/process workflow selected by use case.
Evidence
Result, transaction context and audit trail.
SOURCE-BOUND REFERENCE
CheckID-ET100: source-backed product specification
Source → Scope → Evidence → Limitation
Model and source
CheckID-ET100 · official CheckID public product source. Source status: SOURCE_BACKED.
Source-backed hardware
Cortex-A53; 10.1in; NFC; MRZ; camera; fingerprint. Only these sourced attributes are promoted to public specification in .
Middleware boundary
driver/firmware boundary. Concrete driver/firmware versions require separate source evidence when absent from the datasheet/matrix.
CheckID integration
SDK/API cross-link. Device capability does not imply every verification method is supported.
Publication rule
No CPU/OS/interface/certification is added beyond the matrix/datasheet. Compatibility is tied to tested configuration or source version.
Lifecycle and limitations
Where EOL, firmware compatibility or tested OS is not sourced, records a publication limitation rather than inferring it.
