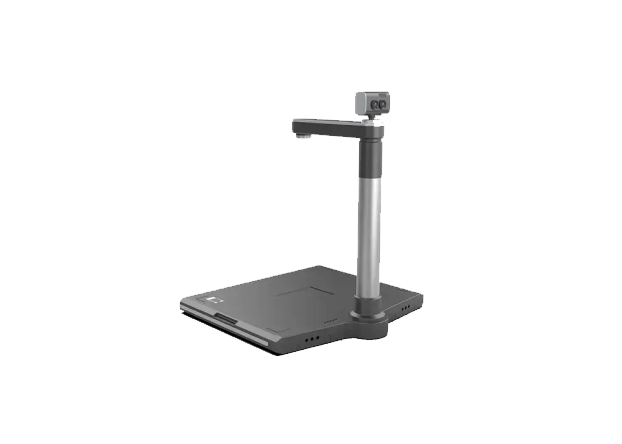

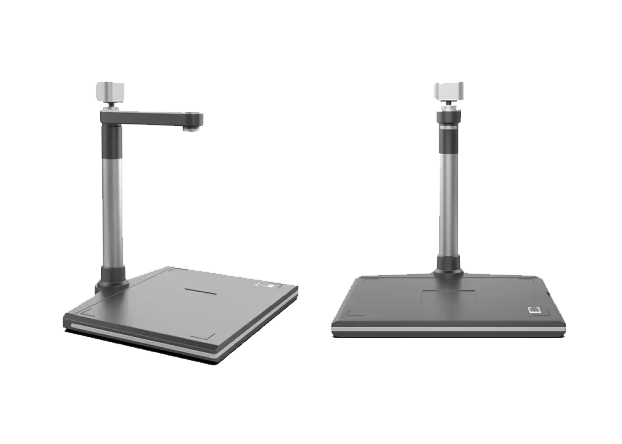

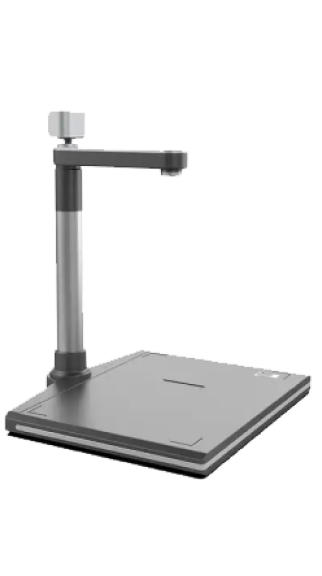

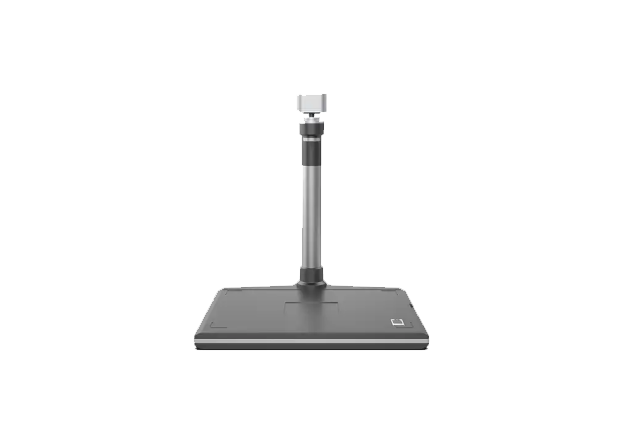

Document Reader (BioR502-MRZ)
ICAO ePassport Reader ID Card Document Camera Scanner
BioR502-MRZ
Model: BioR502-MRZ
BioR502-MRZ is designed to meet tough security needs without sacrificing convenience. The device has a USB Type A female port allowing for it to be connected to a PC. Various biometric sensors such as SecuGen, SupreMa, ZKTeco and Morpho are supported by the card reader. The biometric sensor should be selected based on customer requirements.
Function:
SmartCard
Rich Ports
NFC
Camera
Fingerprint
MRZ
Technical Specifications
| Item | Specification | Item | Specification |
|---|---|---|---|
| Interface | USB 2.0 CCID(also compiant with USB 1.1) | Type of object that can be photographed | eID card, ePassport, contract, credential |
| USB Port | USB Type C female on reader port | Meantime Between Failure(MTBF) | 500,000 hours |
| Transmission Speed | 12Mbps(USB 2.0 Full Speed) | Card Reader Standard | ISO-7816 Class A, B, C ( 5V, 3V,1.8V) Standard ISO 14443 Standard, Felica Standard, Mifare © Standard EMV Level 1 Standard PC/SC Standard USB 2.0 Standard CCID Standard |
| Dimension | 341 * 309 * 400mm (L*W*H) | Warranty | one year warranty |
| SIM Card | 2 SAM Slot | Shooting format | A4,A5,A6, ID Card, ICAO ePassport, SIM card |
| Hardware Security | Support Card short circuit protection Build in short-circuited / over-voltage protection | Image format | JPG, TIF, PNG, BMP, PDF |
| ID1 Contact | Supported Card Types: 1.8V, 3V and 5V Smart Card Interface Speed: 10753~625kbps(when supported by card) Smart Card Interface Speed: 10753~625kbps(when supported by card) ISO 7816-3 ID-1 (full-size) ISO/IEC7816, T=0 and T=1 protocol, Class A, B, C cards | Physical Security | Short circuit and thermal protection/over-voltage protection High security level chipset Electrostatic prevention Firmware encryption mechanism Firmware upgradability in encryption Firmware cannot be read out. Anti-reverse analysis |
| Contactless | Build-in antenna 106kbps-424kbps Smart Card Clock Frequency: 13.56MHzISO 14443 Type A and Type B, Mifare© Protocol, Felica® protocol | API Standard | PC/SC Lite/WINSCARD API |
| Fingerprint Module Model Name | SupreMa BM-Slim2S | DPI/Resolution | 500 DPI |
| Biometric template Standards | Suprema, ISO19794-2, ANSI 378 | Light Source | Red LED |
